Implementing OTP Authentication with 160Verify

One-Time Passwords (OTPs) are a widely adopted mechanism for securing user authentication flows. They provide an additional layer of protection by validating that a user is in possession of a specific mobile number at the time of login, signup, or sensitive action.

We will walk through how to implement SMS-based OTP authentication using 160Verify, our OTP verification service, and explain how the API fits into a real-world authentication workflow. You should refer to our API documentation under the heading 160Verify for full technical details.

What Is 160Verify?

160Verify is a mobile phone-number verification service built on the 160.com.au messaging platform. It allows businesses to:

Send time-limited OTP codes via SMS
Verify user-entered codes in real time
Track delivery, match, failure, and expiry outcomes
Secure login, registration, password reset, and transaction approval flows

Unlike generic SMS sending, 160Verify is purpose-built for authentication and includes OTP lifecycle management, verification status codes, and audit data.

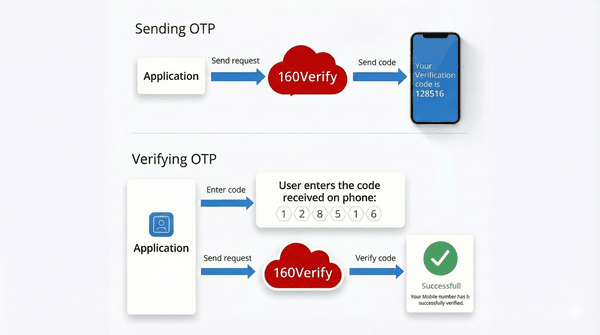

Typical OTP Authentication Flow

A standard OTP authentication flow using 160Verify looks like this:

A user enters their mobile number in your application
Your backend requests an OTP to be sent via 160Verify
The user receives the OTP via SMS
The user enters the OTP in your application
Your backend verifies the OTP with 160Verify
Access is granted or denied based on the verification result

This approach ensures that only users who can receive SMS messages at the specified number can proceed.

160Verify Service Setup

Use the SMS OTP Management screen to define how your OTP should behave (number of digits and expiry time in minutes) and to monitor results.

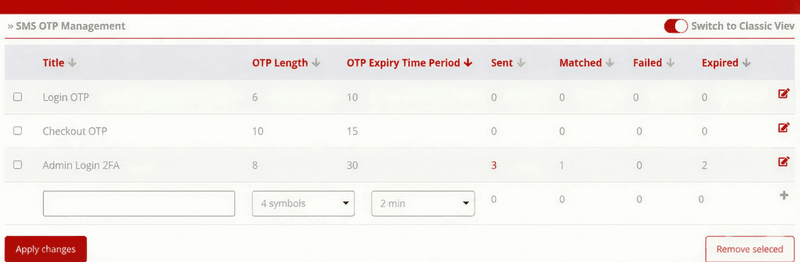

Figure 1: The SMS OTP Management Configuration Screen

Step-by-step Setup

Go to 160Verify Management.
In the bottom row:
- Title: enter a meaningful label (e.g., Login OTP, Checkout Verification, Admin 2FA).
- OTP Length: choose the number of digits (commonly 6).
- OTP Expiry Time Period / TTL: choose how long the OTP is valid (commonly 5–10 minutes).
Click Apply changes to save.

After saving, your configuration will have an otpId (shown/available via API). You will use that otpId in your application when sending/verifying OTPs.

Understanding Dashboard Analytics

The dashboard provides real-time columns to track your OTP performance:

Dashboard Column	Description	Triggered By
Sent	OTP messages submitted/sent for that configuration.	/send API call
Matched	Correct code entered before expiry (even if wrong codes were entered previously).	statusCode = 3
Failed	One or more codes were entered and none matched.	statusCode = 4
Expired	No code was entered (submitted to us to verify) before the TTL elapsed.	statusCode = 5

Note: On the API side, you may also encounter statusCode = 6, which represents a Used code (a second or subsequent match attempt for an already verified OTP).

API Workflow

You will typically implement this high-level flow:

GET /v1/otp List OTP configurations (to find your otpId)
POST /v1/otp/{otpId}/send Send OTP to user: { "phone": "..." }
POST /v1/otp/{otpId}/verify Verify the code: { "phone": "...", "code": "123456" }

Example Implementation (PHP)

Authentication Note: These examples use standard HTTP Basic Authentication. You must Base64 encode your username:sms-secret string.

1 Send OTP (PHP)

Sends an OTP SMS to the user's mobile number. We also check the response to ensure the message was accepted.

send_otp.php PHP

<?php
$otpId    = 123;
$phone    = '+61412345678';
$username = 'your_username';
$secret   = 'your_sms_secret';

$url = "https://api.160.com.au/v1/otp/$otpId/send";

$data = json_encode([
    'phone' => $phone
]);

// Create Basic Auth Header (base64 encoded username:secret)
$authHeader = 'Authorization: Basic ' . base64_encode("$username:$secret");

$ch = curl_init($url);
curl_setopt($ch, CURLOPT_POST, true);
curl_setopt($ch, CURLOPT_POSTFIELDS, $data);
curl_setopt($ch, CURLOPT_RETURNTRANSFER, true);
curl_setopt($ch, CURLOPT_HTTPHEADER, [
    $authHeader,
    'Content-Type: application/json'
]);

$response = curl_exec($ch);
$httpCode = curl_getinfo($ch, CURLINFO_HTTP_CODE);
curl_close($ch);

// Check if request was successful (HTTP 200)
if ($httpCode >= 200 && $httpCode < 300) {
    echo "OTP sent successfully: " . $response;
} else {
    echo "Error sending OTP. HTTP Code: " . $httpCode . " Response: " . $response;
    // Handle error logic here (e.g., log error, show message to user)
}
?>

2 Verify OTP (PHP)

Verifies the user's input against the active OTP session.

verify_otp.php PHP

<?php
$otpId    = 123;
$phone    = '+61412345678';
$code     = '128516';   // code user entered
$username = 'your_username';
$secret   = 'your_sms_secret';

$url = "https://api.160.com.au/v1/otp/$otpId/verify";

$data = json_encode([
    'phone' => $phone,
    'code'  => $code
]);

// Create Basic Auth Header (base64 encoded username:secret)
$authHeader = 'Authorization: Basic ' . base64_encode("$username:$secret");

$ch = curl_init($url);
curl_setopt($ch, CURLOPT_POST, true);
curl_setopt($ch, CURLOPT_POSTFIELDS, $data);
curl_setopt($ch, CURLOPT_RETURNTRANSFER, true);
curl_setopt($ch, CURLOPT_HTTPHEADER, [
    $authHeader,
    'Content-Type: application/json'
]);

$response = curl_exec($ch);
curl_close($ch);

$result = json_decode($response, true);
$statusCode = $result['verify']['statusCode'] ?? null;

if ($statusCode == 3) {
    echo "OTP verified successfully";
} elseif ($statusCode == 4) {
    echo "Incorrect OTP";
} elseif ($statusCode == 5) {
    echo "OTP expired";
} else {
    echo "Verification failed or error occurred.";
}
?>

Conclusion

OTP authentication remains one of the most effective ways to verify user identity. With 160Verify, businesses gain a purpose-built verification API that combines SMS delivery, OTP lifecycle management, and verification logic into a single, auditable workflow.
